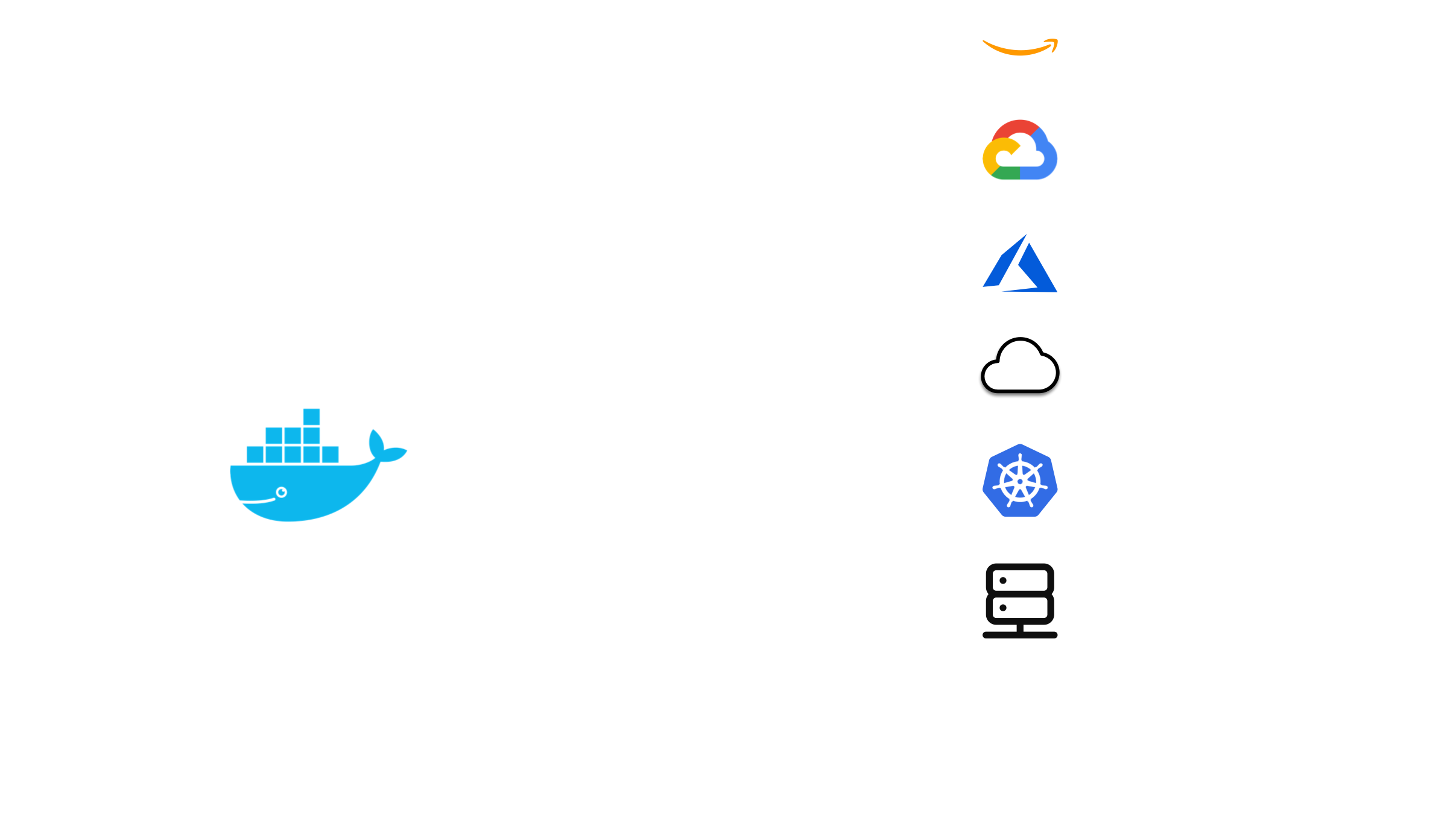

This quick start guide explains how to use Tensor9 to deploy your existing Docker Compose app as a private appliance. As you follow this guide, you will:
  • Set up a Tensor9 control plane in your AWS account and bind a Docker Compose file as the origin stack for your app.
  • Test your app running in an appliance.
  • Release infrastructure changes.

​
Prerequisites

  • Send an email to [email protected] and request an API key. You must have an API key to complete the quick start.
  • Create an AWS account for Tensor9. We will refer to this as the Tensor9 AWS account. Important:
    • Your Tensor9 AWS account should be a dedicated AWS account used only for Tensor9. This reduces the risk of conflicts between your app deployed in a Tensor9 appliance and any other software, infrastructure, or resources you might have in a general-purpose AWS account.
    • Your Tensor9 AWS account must be located in a United States region. Support for non-US regions will be available in the near future.
  • Install AWS CLI in your environment, and set up an AWS CLI profile that has admin permissions to your new AWS account.
  • Install Java 17 or later in your environment.
  • Have a docker-compose.yml file ready with your multi-container application.
  • Ensure all container images referenced in your compose file are pushed to container registries (ECR, Docker Hub, GitHub Container Registry, etc.).

​
Install OpenTofu or Terraform

In your environment, you’ll need to install Terraform/OpenTofu CLI. This guide assumes you are using OpenTofu and uses the tofu command throughout.

​
Install Tensor9 CLI

Run the following command to install the tensor9 CLI:
curl https://t9-artifacts-prod-1.s3.us-west-2.amazonaws.com/tensor9-latest > tensor9 && \
  chmod +x tensor9 && \
  sudo tensor9 install
Then set your Tensor9 API key:
export T9_API_KEY=<YOUR_API_KEY>
Note: An API key is required. If you do not have an API key, send email to [email protected] to request one.

​
Set up a Tensor9 control plane and create a new app

  1. Set up a Tensor9 control plane in your new AWS account (this takes several minutes to complete):
tensor9 vendor setup \
  -cloud aws \
  -region <YOUR-REGION> \
  -awsProfile <YOUR_AWS_CLI_PROFILE>
  1. Create a new Tensor9 app.
tensor9 app create -name compose-quickstart -displayName "Compose example app"
Note: The length of the displayName field must be 32 characters or fewer.

​
Publish your Docker Compose file and bind it to your app

Tensor9 works by compiling your docker-compose.yml file for each appliance you want to deploy to. Your next step is to publish your compose file to your Tensor9 control plane:
tensor9 stack publish \
  -stackType DockerCompose \
  -stackS3Key my-app-compose \
  -file docker-compose.yml
This will return a native stack id, which will look something like this: s3://t9-ctrl-000001/my-app-compose.yml The next step is to bind your published stack to your app:
tensor9 stack bind \
  -appName compose-quickstart \
  -stackType DockerCompose \
  -nativeStackId "<YOUR_NATIVE_STACK_ID>"
This registers your stack with your app so that you can release your app/stack combination to appliances. In the future, you can publish new versions of your stack (using the tensor9 stack publish command) without having to bind the app again.

​
Create a test appliance and test your app

  1. Create a test appliance:
tensor9 test appliance create \
  -appName compose-quickstart \
  -name compose-quickstart-test
  1. View the output of tensor9 report to determine when your test appliance is ready for a release. While the test appliance is creating, tensor9 report displays output such as:
Vendor: My Company [id: 000000000165ebb8]:
            Name: My Company

    Apps: (1)
        compose-quickstart [id: 0000000000000213]:
            Name:   compose-quickstart
            Domain: -
            Stacks: (1)
                DockerCompose: (1)
                    my-app-compose | s3://t9-ctrl-000001/my-app-compose.yml

    Customer Appliances: (0)

    Test Appliances: (1)

        Creating: (1)
            compose-quickstart-test [id: 000000000000007e]
When the appliance is ready, tensor9 report displays output such as:
Vendor: My Company [id: 000000000165ebb8]:
            Name: My Company

    Apps: (1)
        compose-quickstart [id: 0000000000000213]:
            Name:   compose-quickstart
            Domain: -
            Stacks: (1)
                DockerCompose: (1)
                    my-app-compose | s3://t9-ctrl-000001/my-app-compose.yml

    Customer Appliances: (0)

    Test Appliances: (1)
        Test Appliance: compose-quickstart-test [id: 0000000000000001]:
            Status:          Live
            Name:            compose-quickstart-test
            Customer:        My Company [id: 000000000165ebb8]
            Cloud Details:   AWS us-west-2
            Form Factor:     AWS Connected
            Appliance Id:    0000000000000001

        Installs:

        Releases:
            Effective Releases: (0)
            Prepped Releases: (0)

        Hardware: (updated 1 second ago)
            Uptime:               3 minutes
            Capacity Machines:    2
  1. Create a release to your test appliance:
tensor9 stack release create \
  -appName compose-quickstart \
  -testApplianceName compose-quickstart-test \
  -vendorVersion "1.0.0" \
  -description "First release of my Docker Compose app via Tensor9" \
  -notes "By [email protected]"
After a few minutes, the deployment stack downloads into a new directory that is named after your appliance.
  1. Change into the new directory that contains the deployment stack for your test appliance:
cd compose-quickstart-test
  1. Deploy as normal by running tofu init followed by tofu apply.
  2. View the deployed services:
kubectl get deployments
kubectl get services
kubectl get pods
  1. Access your application through the load balancer. Get the load balancer endpoint for services with exposed ports:
kubectl get service <service-name> -o jsonpath='{.status.loadBalancer.ingress[0].hostname}'

​
Release an infrastructure change

You can release infrastructure changes to your Docker Compose stack at any time.
1

Update your docker-compose.yml file

Make any desired changes to your compose file. For example, you could:
  • Add a new service
  • Change resource limits
  • Add environment variables
  • Update container image versions
Important: The next step will overwrite the previous origin stack. All new releases will come from the most recently published version of your origin stack.
2

Re-publish your origin stack

tensor9 stack publish \
  -stackType DockerCompose \
  -stackS3Key my-app-compose \
  -file docker-compose.yml
If the origin stack is published successfully, the following message is displayed:
Your origin stack is ready to be released. Use the following native stack id s3://t9-ctrl-000001/my-app-compose.yml
Your updated origin stack is now ready. You don’t need to rebind it - new releases will automatically use the updated version.
3

Create a new release

tensor9 stack release create \
  -appName compose-quickstart \
  -testApplianceName compose-quickstart-test \
  -vendorVersion "1.0.1" \
  -description "Added caching layer and updated API resources" \
  -notes "By [email protected]"
After a few minutes, the deployment stack for your updated compose file downloads into the appliance directory.
4

Deploy

Change into the directory that contains the deployment stack for your test appliance:
cd compose-quickstart-test
Deploy the updated infrastructure:
tofu apply
5

Verify the changes

kubectl get deployments
kubectl get services
kubectl get pods
You should see your new services, updated resource limits, or other changes reflected in the Kubernetes resources.

​
Next steps

Now that you’ve deployed a Docker Compose app with Tensor9:
